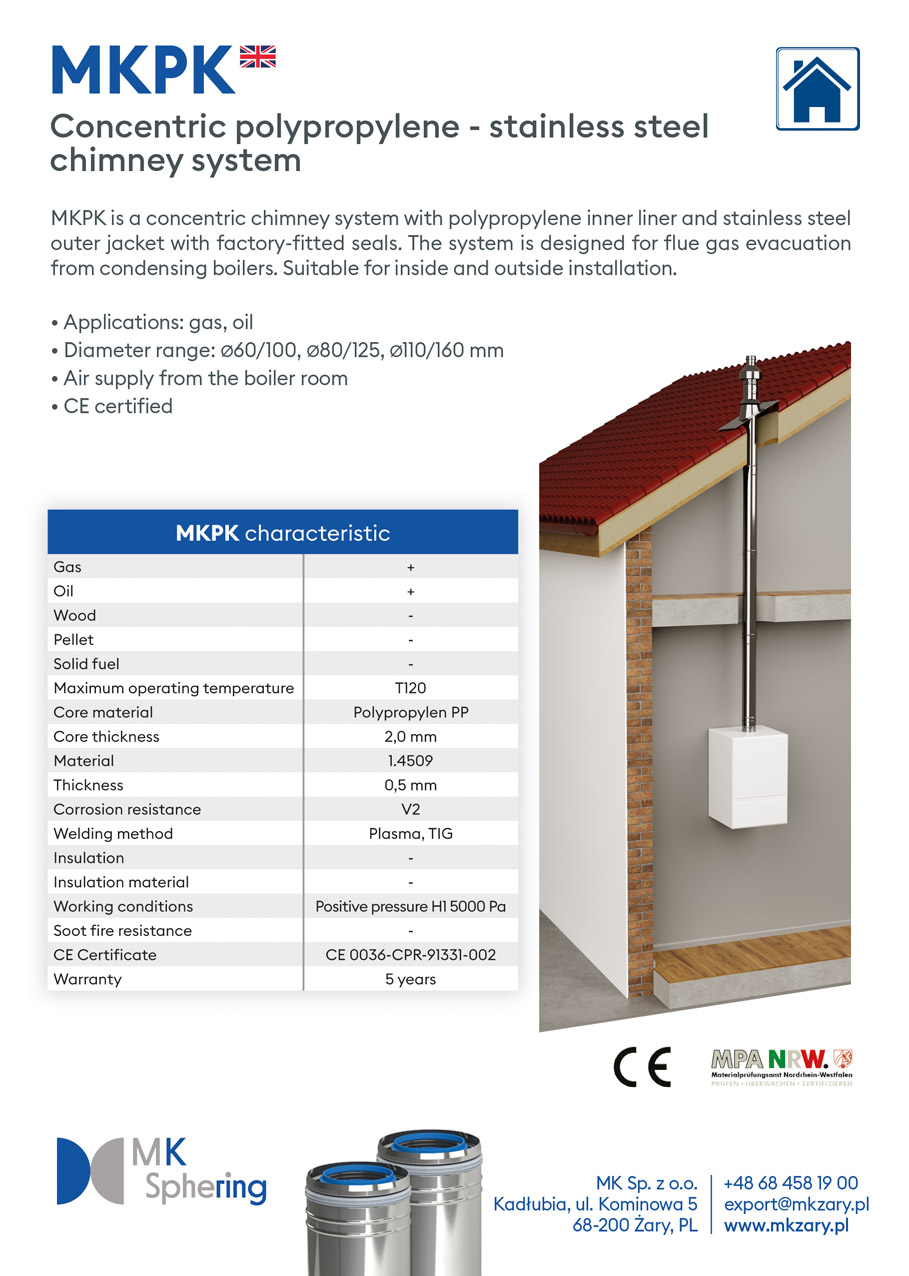

Twin-wall PP-steel system for condensing and Turbo boilers MKPK

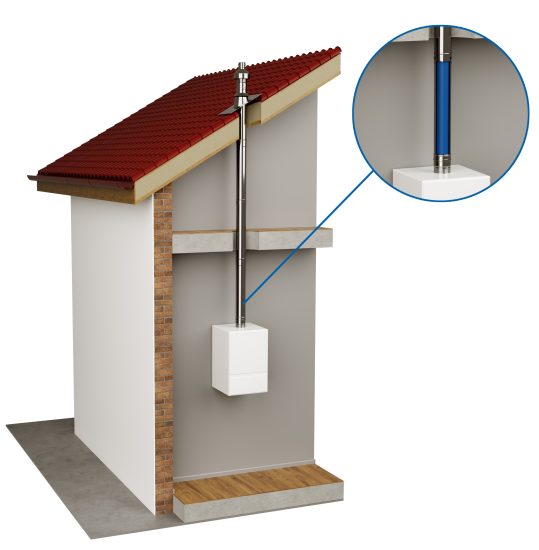

The MKPK is a concentric system designed for exhaust gases from condensing boilers. It is used as a standalone external chimney, mounted against a wall.

The elements consist of two channels, the inner of which discharges exhaust gases to the atmosphere, while the outer casing creates air insulation and supplies combustion air.

Air intake is achieved through an air intake located above the tee or a special air intake plate below the tee. These elements are mounted at the base of the vertical section of the chimney.

In elements mounted above the tee or intake, the outer casing creates air insulation.

The inner pipe is made of polypropylene (polypropylene, resistant to temperatures below 0°C), and the outer casing is made of stainless steel.

All MKPK system components include gaskets.

The system is available in the following diameters:
Ø60-100, Ø80-125, Ø110-160

CE 0036-CPR-913331-002
EN-14471;T120-H1-W-2-O00-LE-E-UO
