Twin-wall PP system for condensing and Turbo boilers PEGASUS PP PS

The Pegasus PP PS system is an air-flue gas chimney system designed for exhaust gases from condensing boilers.

This twin-wall, uninsulated system is most often used as a connection or standalone chimney for condensing boilers. The inner pipe of the system discharges exhaust gases from the boiler, while the channel between the outer and inner pipes supplies air to the boiler. The inner pipe is made of polypropylene, and the outer pipe is made of powder-coated metal.

The Pegasus PP PS system complements the chimney sections where an additional air channel is not required, with the single-walled polypropylene systems Pegasus PP and Pegasus PP Flex.

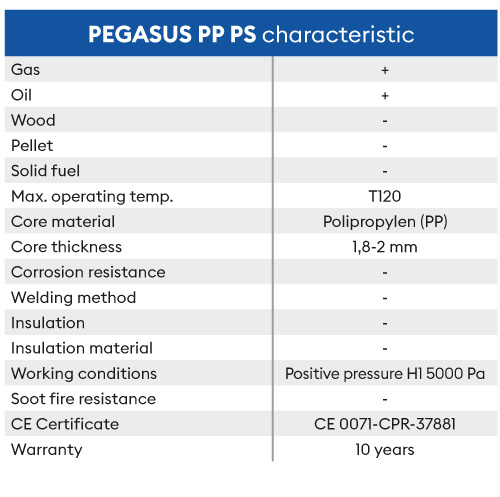

Pegasus PP PS, Pegasus PP, and Pegasus PP Flex are polypropylene systems designed for gas and oil boilers, designed for wet operation at pressures up to 200 Pa and a maximum temperature of 120°C. Seals ensure the system is leak-tight against condensate leaks.

The Pegasus PP PS polypropylene system cannot be combined with steel systems in the PP+STEEL configuration (due to different casing dimensions). The Pegasus PP PS system is fully compatible with the single-wall Pegasus PP and Pegasus PP Flex systems.
