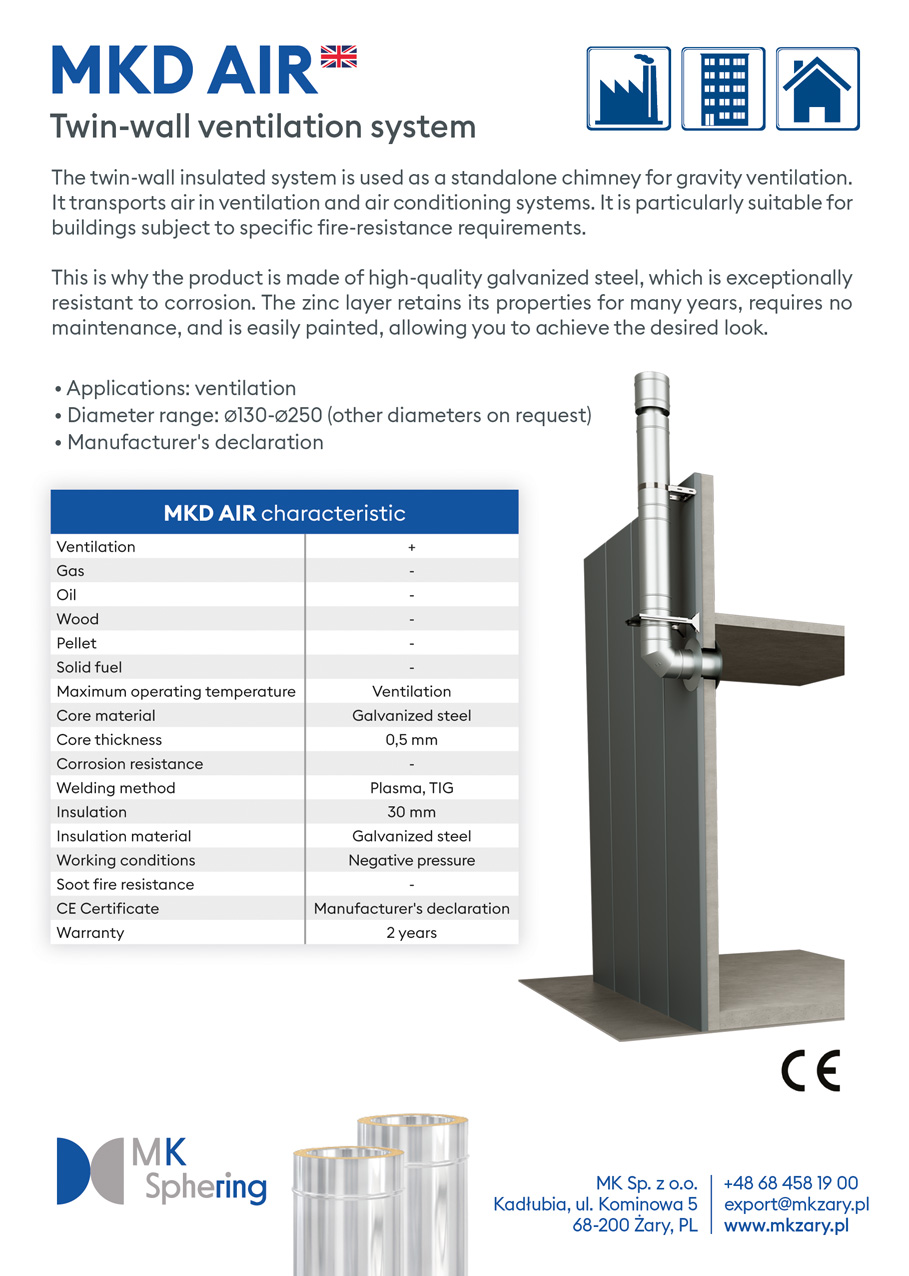

Twin-wall ventilation system MKD AIR

The twin-wall insulated system is used as a standalone chimney for gravity ventilation. It transports air in ventilation and air conditioning systems. It is particularly suitable for buildings subject to specific fire-resistance requirements.

This is why the product is made of high-quality galvanized steel, which is exceptionally resistant to corrosion. The zinc layer retains its properties for many years, requires no maintenance, and is easily painted, allowing you to achieve the desired look.

The twin-wall ventilation chimney has an insulating layer made of high-quality mineral wool. This material was chosen for its properties, such as fire resistance, dimensional stability, and low thermal conductivity. The insulating layer is also durable and waterproof. Its thickness is up to 30 mm, providing a high degree of protection against various factors.

The MKD Air external ventilation chimney operates under negative pressure, meaning it does not require a seal. The MKD Air system can be installed indoors or outdoors and positioned anywhere, as it’s wall-mounted. The optimal wall thickness of 0.5 mm ensures long-term, trouble-free operation.
