Twin-wall insulated flange system MKDF

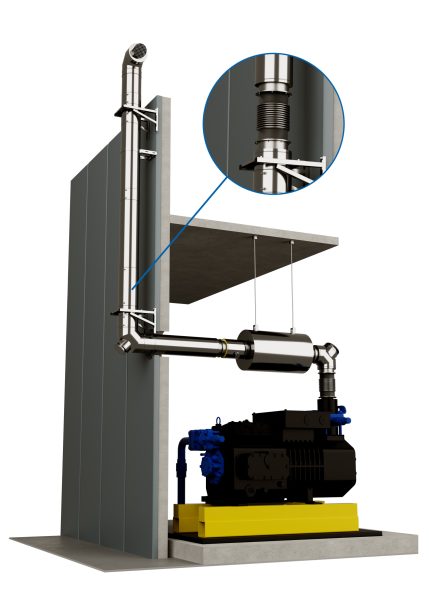

MKDF is a twin-wall system with flange connections and a graphite gasket. The system is designed to work with devices such as diesel engines, generators, steam generators and to remove technological fumes. MKSD is used for fuels: gas, biogas, oil, diesel and mazut.
The system can operate at positive pressure or negative pressure of 10,000 Pa. It is designed for both – dry and wet operation, at a maximum temperature of 600°C.
It is used in:
• Emergency power supply systems
• Power generators
• Turbines
• Vogeneration (continuous operation)
• Various types of installations that require very high tightness.
• Emergency power supply systems
• Power generators
• Turbines
• Vogeneration (continuous operation)
• Various types of installations that require very high tightness.
Warranty
CAD files
SYSTEM DETAILS
PREMIUM
1.4404
Core steel grade
Core steel grade
0.6
Wall thickness in mm
Wall thickness in mm
30
Insulation thickness
Insulation thickness
600°C
Maximum operating temperature
Maximum operating temperature
5 years
Warranty
Warranty
10 years
Warranty
Warranty
STANDARD
1.4521
Core steel grade
Core steel grade
0.5
Wall thickness in mm
Wall thickness in mm
30
Insulation thickness
Insulation thickness
600°C
Maximum operating temperature
Maximum operating temperature
5 years
Warranty
Warranty
10 years
Warranty
Warranty
